Keep in mind that you cannot get better resolution with note messages (0-127) so you will have bigger jumps in your scaled control values. (you could also interpolate on the receiving end)

you should probably use a controller (ctlin) which is not limited to 0-127 but has 14bit resolution (I think?)

I did have issues sending ctl data from max and reaktor to pd, it seems pd just sends midi data, while other apps scale and translate the values.

I think a handly abstraction would be one that scales the incoming range to a specified range automatically... has 4 args, the min and max of the input and the desired min and max. if no one else has bothered I'll patch on up myself.

B. ----- Original Message ----- From: "Marc Lavallée" odradek@videotron.ca To: "shreeswifty" bigswift@ufl.edu Cc: pd-list@iem.at Sent: Tuesday, December 16, 2003 4:32 PM Subject: Re: [PD] tight syncing of two pd machines...

On Tue, Dec 16, 2003 at 02:54:21PM -0500, shreeswifty wrote:

...

is there a simple way to configure or scale an incoming midi ## 0-127 to -360to360

( ( ( <midi value> * 720 ) + 1 ) / 127 ) - 360

-- Marc

is it in the abstractions CVS?

B. ----- Original Message ----- From: "Andre Schmidt" huolong@arcor.de To: pd-list@iem.at Sent: Wednesday, December 17, 2003 12:41 PM Subject: Re: [PD] tight syncing of two pd machines...

hi,

someone on this list made this sub-patch for me a long time ago (gotta check the archives)

takes a message:

"remap <min_input> <max_input> <min_output> <max_output>"

cheers -andre

On Wed, 17 Dec 2003 10:24:19 -0500 "B. Bogart" ben@ekran.org wrote:

Keep in mind that you cannot get better resolution with note messages (0-127) so you will have bigger jumps in your scaled control values. (you could also interpolate on the receiving end)

you should probably use a controller (ctlin) which is not limited to 0-127 but has 14bit resolution (I think?)

I did have issues sending ctl data from max and reaktor to pd, it seems pd just sends midi data, while other apps scale and translate the values.

I think a handly abstraction would be one that scales the incoming range

to

a specified range automatically... has 4 args, the min and max of the

input

and the desired min and max. if no one else has bothered I'll patch on up myself.

B. ----- Original Message ----- From: "Marc Lavallée" odradek@videotron.ca To: "shreeswifty" bigswift@ufl.edu Cc: pd-list@iem.at Sent: Tuesday, December 16, 2003 4:32 PM Subject: Re: [PD] tight syncing of two pd machines...

...

On Tue, Dec 16, 2003 at 02:54:21PM -0500, shreeswifty wrote:

...

is there a simple way to configure or scale an incoming midi ## 0-127 to -360to360

( ( ( <midi value> * 720 ) + 1 ) / 127 ) - 360

-- Marc

---

PD-list mailing list PD-list@iem.at http://iem.at/cgi-bin/mailman/listinfo/pd-list

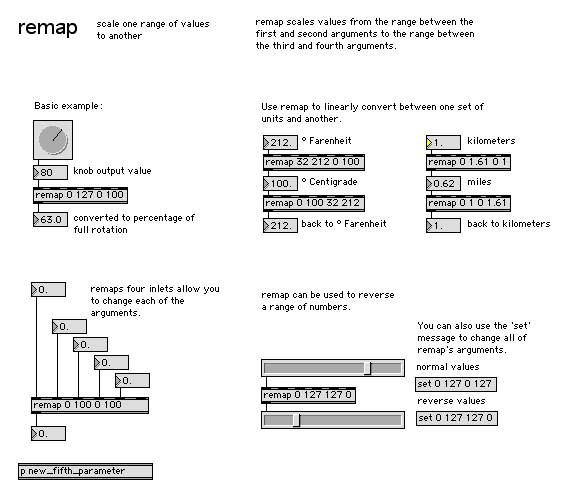

there is also an object by shea ako called remap which does exactly what you want, I'll see if he has pd version ready for release.

http://www.hyperspasm.com/max/general/remap.png

At 13:45 -0800 17.12.03, Josh Steiner wrote:

i made one called [scalenum] that i use all the time. -josh

...

I think a handly abstraction would be one that scales the incoming range to a specified range automatically... has 4 args, the min and max of the input and the desired min and max. if no one else has bothered I'll patch on up myself.

B.

-- ____________________________________________________ independent u.s. drum'n'bass -- http://vitriolix.com

#N canvas 141 178 799 461 8; #X obj 22 376 outlet; #X floatatom 72 297 5 0 0 0 - - -; #X obj 22 18 inlet; #X floatatom 85 25 5 0 0 0 - - -; #X obj 71 96 $1; #X obj 44 56 t f b; #X obj 101 96 $2; #X obj 130 96 $3; #X obj 160 96 $4; #X obj 44 238 expr ((( $f1 - $f2 ) / ( $f3 - $f2 ) ) * ( $f5 - $f4 )) + $f4; #X connect 2 0 5 0; #X connect 3 0 5 0; #X connect 4 0 9 1; #X connect 5 0 9 0; #X connect 5 1 4 0; #X connect 5 1 6 0; #X connect 5 1 7 0; #X connect 5 1 8 0; #X connect 6 0 9 2; #X connect 7 0 9 3; #X connect 8 0 9 4; #X connect 9 0 1 0; #X connect 9 0 0 0;

Hallo, Marc Lavallée hat gesagt: // Marc Lavallée wrote:

I though about adding a min-max filter, but it would involve more calculation, so I'll leave that part as an exercise. :-)

[clip $3 $4] | [outlet]

ciao

Frank Barknecht _ ______footils.org__

On Tue, Dec 16, 2003 at 04:20:41PM -0600, Eric Skogen wrote:

first idea that comes to mind:

0...127 | [ expr ((($f1 / 127) * 720) - 360) ] | -360...360

but IANM (i'm not a mathematician)...

You are right, I was wrong.

My idea was:

( ( ( <midi value> * 720 ) + 1 ) / 127 ) - 360

But it's actually:

( <midi value> * 720 / 127 ) - 360

or (without expr):

0...127 | [ * 720 ] | [ / 127 ] | [ - 360 ] | -360...360

IANM too.

Marc
